Spanners

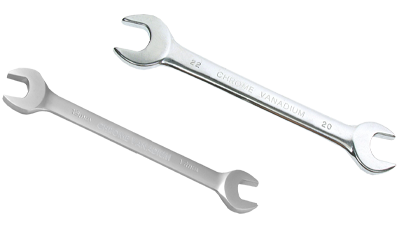

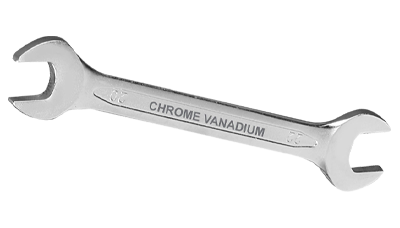

DOUBLE ENDED OPEN JAWS SPANNERS LONG PATTERN

PT 301
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3110
  • Each Head set at 15 ° Angle
  • Hardened and Tempered
  • Chrome Plated Fully Polished/Satin Finish

SPECIFICATIONS

Elliptical Pattern

Size Qty/Ctn.
mm Pcs.
6×7 800
8×9 600
10×11 400
12×13 300
14×15 200
16×17 160
18×19 120
20×22 100
21×23 80
24×26 60
24×27 60
25×28 40
27×32 40
30×32 40

Metric Sizes Set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 6×7, 8×9, 10×11, 12×13, 14×15, 16×17 60
8M 8 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22 30
10M 10 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×27 20
12M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 12
122M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×27, 25×28, 30×32 12

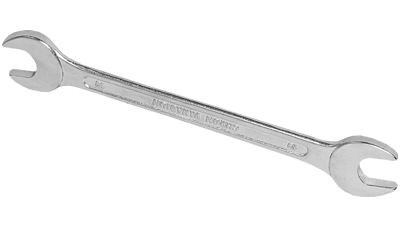

DOUBLE ENDED OPEN JAWS SPANNERS LONG PATTERN

PT 302
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3110
  • Each Head set at 15 ° Angle
  • Hardened and Tempered
  • Chrome Plated Fully Polished/Satin Finish

SPECIFICATIONS

Press Panel

Size Qty/Ctn.
mm Pcs.
6×7 800
8×9 600
10×11 400
12×13 300
14×15 200
16×17 160
18×19 120
20×22 100
21×23 80
24×26 60
24×27 60
25×28 40
27×32 40
30×32 40

Metric Sizes Unit

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 6×7, 8×9, 10×11, 12×13, 14×15, 16×17 60
8M 8 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22 30
10M 10 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×27 20
12M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 12
122M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×27, 25×28, 30×32 12

DOUBLE ENDED OPEN JAWS SPANNERS LONG PATTERN

PT 303
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3110
  • Each Head set at 15 ° Angle
  • Drop Forged from Chrome Vanadium Steel
  • Hardened and Tempered
  • Chrome Plated, Mirror Polished Heads

SPECIFICATIONS

Recessed Panel

Size Qty/Ctn.
mm Pcs.
6×7 800
8×9 600
10×11 400
12×13 300
14×15 200
16×17 160
18×19 120
20×22 100
21×23 80
24×26 60
24×27 60
25×28 40
27×32 40
30×32 40

Metric Sizes Set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 6×7, 8×9, 10×11, 12×13, 14×15, 16×17 60
8M 8 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22 30
10M 10 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×27 20
12M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 12
122M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×27, 25×28, 30×32 12

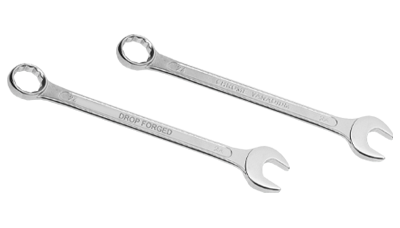

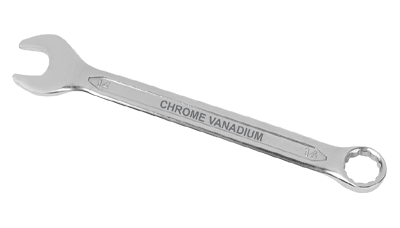

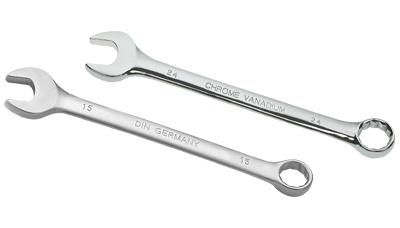

COMBINATION OPEN & RING END SPANNERS

PT 304
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3110
  • Each Head set at 15 ° Angle
  • Hardened and Tempered
  • Chrome Plated, Mirror Polished Heads

SPECIFICATIONS

Elliptical Pattern

Size Qty/Ctn.
mm Inch Pcs.
6 1/4 1000
7 – 1000
8 5/16 800
9 – 600
10 3/8 600
11 7/16 500
12 – 400
13 1/2 300
14 9/16 300
15 – 200
16 5/8 200
17 11/16 200
18 – 160
19 3/4 120
20 – 100
21 3/16 100
22 7/8 80
23 – 80
24 15/16 60
25 1 60
26 – 60
27 1.1/16 60
28 1.1/8 40
29 – 40
30 – 40
32 1.1/4 40

Metric sizes set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 8, 9, 10, 11, 13, 17 60
8M 8 6, 8, 10, 11, 13, 14, 17, 19 40
88M 8 8, 9, 10, 11, 13, 17, 19, 21 30
10M 10 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 24
12M 12 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 24
16M 16 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26 8
26M 26 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 29, 30, 32 4

SAE Sizes Set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
5S 5 3/8, 7/16, 1/2, 9/16, 5/8 60
11S 11 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1 10
14S 14 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/4 8

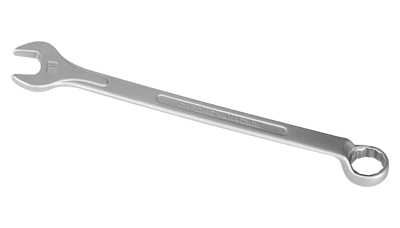

COMBINATION OPEN & RING END SPANNERS (LONG PATTERN)

PT 305
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3110
  • Each Head set at 15 ° Angle
  • Hardened and Tempered
  • Chrome Plated Matt Finish/Polished Head/Satin Finish

SPECIFICATIONS

Size Qty/Ctn.
mm Pcs.
6 1000
7 1000
8 800
9 600
10 600
11 500
12 400
13 300
14 300
15 200
16 200
17 200
18 160
19 120
20 100
21 100
22 80
23 80
24 60
25 60
26 60
27 60
28 40
29 40
30 40
31 40

Metric sizes set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 8, 9, 10, 11, 13, 17 60
8M 8 6, 8, 10, 11, 13, 14, 17, 19 40
88M 8 8, 9, 10, 11, 13, 17, 19, 21 30
10M 10 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 24
12M 12 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 24
16M 16 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26 8
26M 26 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 29, 30, 32 4

COMBINATION OPEN & RING END SPANNERS RING DEEP OFFSET

PT 306
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3113B
  • Each Head set at 15 ° Angle
  • Hardened and Tempered
  • Chrome Plated Matt Finish/Satin Finish

SPECIFICATIONS

Size Qty/Ctn.
mm Pcs.
6 1000
7 1000
8 800
9 600
10 600
11 500
12 400
13 300
14 300
15 200
16 200
17 200
18 160
19 120
20 100
21 100
22 80
23 80
24 60
25 60
26 60
27 60
28 40
29 40
30 40
31 40

Metric sizes set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 8, 9, 10, 11, 13, 17 60
8M 8 6, 8, 10, 11, 13, 14, 17, 19 40
88M 8 8, 9, 10, 11, 13, 17, 19, 21 30
10M 10 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 24
12M 12 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 24
16M 16 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26 8
26M 26 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 29, 30, 32 4

COMBINATION OPEN & RING END SPANNERS (LONG PATTERN)

PT 307
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3113B
  • Each Head set at 15 ° Angle
  • Hardened and Tempered

SPECIFICATIONS

Size Qty/Ctn.
mm Inch Pcs.
6 1/4 1000
7 – 1000
8 5/16 800
9 – 600
10 3/8 600
11 7/16 500
12 – 400
13 1/2 300
14 9/16 300
15 – 200
16 5/8 200
17 11/16 200
18 – 160
19 3/4 120
20 – 100
21 13/16 100
22 7/8 80
23 – 80
24 15/16 60
25 1 60
26 – 60
27 1.1/16 60
28 1.1/8 40
29 – 40
30 – 40
32 1.1/4 40

Metric sizes set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 8, 9, 10, 11, 13, 17 60
8M 8 6, 8, 10, 11, 13, 14, 17, 19 40
88M 8 8, 9, 10, 11, 13, 17, 19, 21 30
10M 10 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 24
12M 12 6, 7, 8, 9, 10, 11, 12, 13, 14, 17, 19, 22 24
16M 16 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26 8
26M 26 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 26, 27, 28, 29, 30, 32 4

SAE Sizes set

Set
No.		 No. of
Pieces		 Size
Inch		 Qty.Ctn
Pcs.
5S 5 3/8, 7/16, 1/2, 9/16, 5/8 60
11S 11 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 1 10
14S 11 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1, 1.1/4 8

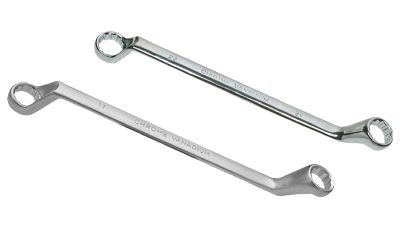

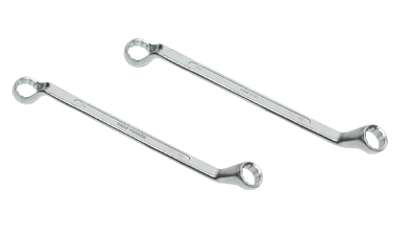

BI-HEXAGONAL RING SPANNERS DEEP OFFSET

PT 308
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 838
  • Each Head set at 15 ° Angle
  • Hardened and Tempered
  • Chrome Platted

SPECIFICATIONS

Size Qty/Ctn.
mm Pcs.
6×7 400
8×9 300
10×11 240
12×13 200
14×15 160
16×17 120
18×19 80
20×22 80
21×23 60
24×26 60
24×27 60
25×28 40
27×32 40
30×32 40

Metric sizes set

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 6×7, 8×9, 10×11, 12×13, 14×15, 16×17 40
8M 8 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22 20
10M 10 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×27 10
12M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 10
122M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 10

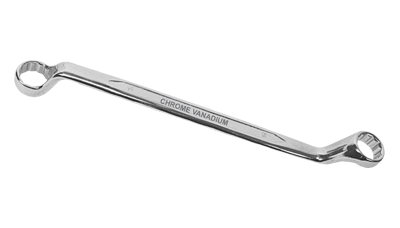

BI-HEXAGONAL RING SPANNERS DEEP OFFSET

PT 309
  • Drop Forged CHROME VANADIUM STEEL
  • DIN 3110
  • Each Head set at 15 ° Angle
  • Hardened and Tempered
  • Chrome Platted Matt Finish/Polished Head/Satin Finish

SPECIFICATIONS

PRESS PANEL

Size Qty/Ctn.
mm Pcs.
6×7 400
8×9 300
10×11 240
12×13 200
14×15 160
16×17 120
18×19 80
20×22 80
21×23 60
24×26 60
24×27 60
25×28 40
27×32 40
30×32 40

METRIC SIZES SET

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 6×7, 8×9, 10×11, 12×13, 14×15, 16×17 40
8M 8 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22 20
10M 10 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×27 10
12M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 10
122M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 10

BI-HEXAGONAL RING SPANNERS DEEP OFFSET

PT 310
  • DIN 838
  • Each Head set at 15 ° Angle
  • Drop Forged from Chrome Vanadium Steel
  • Hardened and Tempered
  • Chrome Platted Mirror Polished Ring

SPECIFICATIONS

Recessed Panel

Size Qty/Ctn.
mm Inch Pcs.
6×7 1/4 x 5/16 400
8×9 – 300
10×11 3/8×7/16 240
12×13 – 200
14×15 1/2×9/16 160
16×17 5/8×11/16 120
18×19 3/4×225/32 80
20×22 13/16×7/8 80
21×23 – 60
24×26 – 60
24×27 15x16x1 60
25×28 – 40
27×32 1.1/16×1.1/4 40
30×32 – 40

METRIC SIZES SET

Set
No.		 No. of
Pieces		 Size
mm		 Qty.Ctn
Pcs.
6M 6 6×7, 8×9, 10×11, 12×13, 14×15, 16×17 40
8M 8 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22 20
10M 10 6×7, 8×9, 10×11, 12×13, 14×15, 16×17, 18×19, 20×22, 21×23, 24×27 10
12M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 10
122M 12 6×7, 8×9, 10×11, 12×13, 14×15, 16×1, 18×19, 20×22, 21×23, 24×26, 25×28, 30×32 10

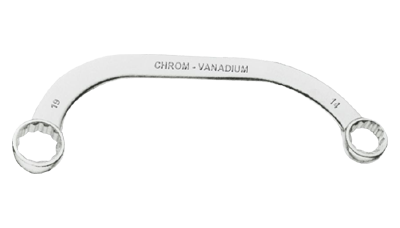

HALF MOON RING SPANNERS

PT 311
  • Chrome-Vanadium Steel
  • Hardened and Tempered
  • Bi-Hexagon Spanner with high leverage for inaccessible areas

SPECIFICATIONS

Size Qty/Ctn.
mm Pcs.
11×13 200
12×13 200
13×15 120
13×17 120
14×17 120
14×19 110
